| Nombre De La Marca: | Copeland |
| Número De Modelo: | Zr310kc-Twd-522 |
| Cuota De Producción: | 1 |
| Precio: | 1USD |
| Tiempo De Entrega: | 1-7days |
| Condiciones De Pago: | T/T |

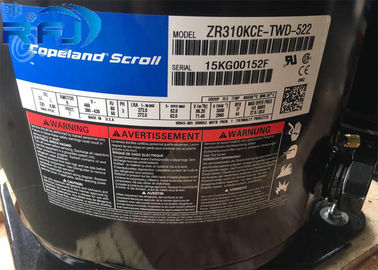

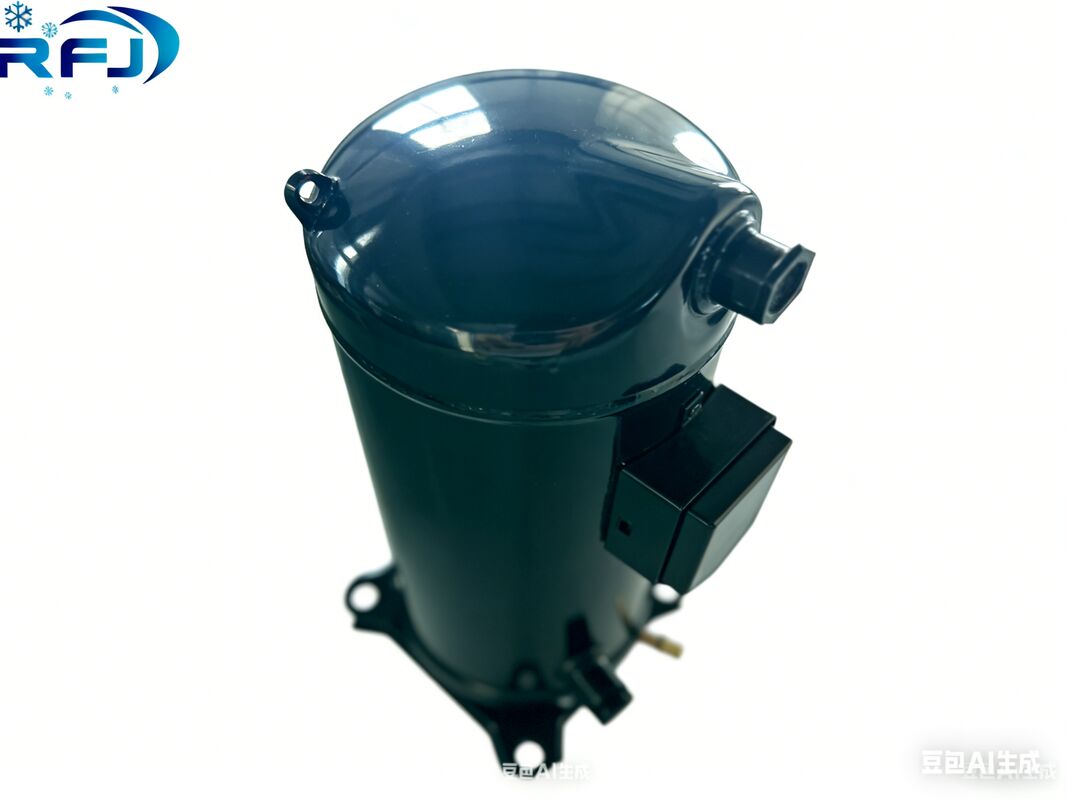

Compresor Scroll Copeland Zr310kc-Twd-522 de refrigeración de 25HP
Potencia: 1.5-15 HP
Temperatura media/alta
Eficiencia superior
Fiabilidad excepcional
Menos piezas móviles
Muy bajo ruido/pulsación de gas.
Especificaciones
La serie ZR de Copeland se puede utilizar para aire acondicionado y bombas de calor. Tenemos modelos fabricados en China y Bélgica. No dude en contactarnos
Compresores ZR Copeland:
1. Los modelos son: ZR16M3-TWD-522, ZR19M3-TWD-522, ZR47KC-TFD, ZR94KC-TFD, ZR125KC-TFD, ZR160KC-TFD ZR61KC-TFD, ZR108KC-TFD, ZR144KC-TFD, ZR72KC-TFD...
2. Son compresores scroll Copeland, se pueden utilizar para aire acondicionado y refrigeración.
3. Tenemos modelos fabricados en China, Tailandia y Bélgica.
| Modelo | HP |
Capacidad de refrigeración | Potencia de entrada (W) |
Corriente (A) |
COP (W/W) |
EER (Btu/Wh) |
Despl. (cc/Rev.) |
Aceite (l) |
Peso (kg) |
Corriente de bloqueo (A) |
Potencia de ruido (dBA) |
|
| (W) | (Btu/h) | |||||||||||
| ZR45KCTFD | 3.8 | 11100 | 37900 | 3320 | 6.1 | 3.34 | 11.4 | 61.1 | 1.36 | 28.1 | 48.0 | 68.0 |
| ZR47KC TFD | 3.9 | 11550 | 39400 | 3430 | 6.3 | 3.37 | 11.5 | 64.2 | 1.36 | 28.1 | 48.0 | 68.0 |
| ZR48KC TFD | 4.0 | 11850 | 40500 | 3600 | 6.1 | 3.28 | 11.2 | 65.5 | 1.36 | 28.1 | 50.0 | 68.0 |
| ZR54KC TFD | 4.5 | 13200 | 44880 | 3980 | 7.3 | 3.31 | 11.3 | 73.2 | 1.95 | 35.8 | 61.8 | 71.0 |
| ZR57KC TFD | 4.8 | 13900 | 47260 | 4170 | 7.8 | 3.34 | 11.4 | 77.2 | 1.95 | 36.3 | 61.8 | 71.0 |
| ZR61KC TFD | 5.1 | 14550 | 49470 | 4430 | 8.2 | 3.28 | 11.2 | 82.6 | 1.95 | 36.1 | 65.5 | 71.0 |
| ZR68KCTFD | 5.7 | 16900 | 57500 | 4960 | 8.6 | 3.40 | 11.6 | 93.0 | 1.77 | 39.0 | 74.0 | 72.0 |
| ZR72KC TFD | 6.0 | 17700 | 60500 | 5200 | 8.9 | 3.43 | 11.7 | 98.1 | 1.77 | 38.6 | 74.0 | 72.0 |
| ZR81KC TDF | 6.8 | 19900 | 68000 | 5810 | 10.5 | 3.43 | 11.7 | 107.8 | 1.77 | 39.0 | 101.0 | 72.0 |
| ZR84KC TFD | 7.0 | 20800 | 71000 | 6000 | 11.4 | 3.46 | 11.8 | 113.6 | 2.51 | 57.2 | 100.0 | 73.0 |
| ZR94KC TFD | 7.8 | 23300 | 79500 | 6750 | 12.5 | 3.46 | 11.8 | 127.2 | 2.51 | 57.2 | 95.0 | 73.0 |
| ZR108KC TFD | 9.0 | 26400 | 90000 | 7550 | 13.7 | 3.52 | 12.0 | 142.9 | 3.25 | 59.9 | 111.0 | 74.0 |
| ZR125KC TFD | 10.4 | 31000 | 106000 | 9000 | 15.8 | 3.46 | 11.8 | 167.2 | 3.25 | 61.2 | 118.0 | 75.0 |
| ZR144KC TFD | 12.0 | 35000 | 120000 | 10100 | 17.6 | 3.49 | 11.9 | 190.9 | 3.25 | 61.2 | 118.0 | 76.0 |
| ZR160KC TFD | 13.3 | 38000 | 130000 | 11300 | 20.3 | 3.37 | 11.5 | 209.1 | 3.25 | 64.9 | 140.0 | 79.0 |
| ZR190KC TFD | 15.8 | 45500 | 155000 | 13600 | 25.6 | 3.34 | 11.4 | 249.2 | 3.25 | 66.2 | 174.0 | 82.0 |
| ZR250KC TWD | 20.8 | 60000 | 204000 | 17700 | 29.6 | 3.37 | 11.5 | 325.2 | 4.67 | 139.3 | 225.0 | 83.0 |
| ZR310KC TWD | 25.8 | 74000 | 253000 | 22000 | 37.9 | 3.37 | 11.5 | 410.6 | 6.80 | 160.1 | 272.0 | 85.0 |
| ZR380KC TWD | 31.7 | 92500 | 315000 | 26500 | 45.1 | 3.49 | 11.9 | 502.7 | 6.30 | 176.9 | 310.0 | 88.0 |
|
|
