Datos del producto:
Pago y Envío Términos:
|
| Tipo: | compresor del refrigerador | Poder nominal del motor: | 5HP |
|---|---|---|---|
| Dislocación: | 14,4 | Nivel de la presión sonora: | 60 |
| Peso [kilogramo: | 2 | Carga del aceite [³ del dm: | 2 |
| Fuente de alimentación [V/~/Hz: | 2 | Corriente bloqueada del rotor [A: | 2 |
| Alta luz: | Compresores de la voluta 5HP,Zh38K4e-Tfd |
||

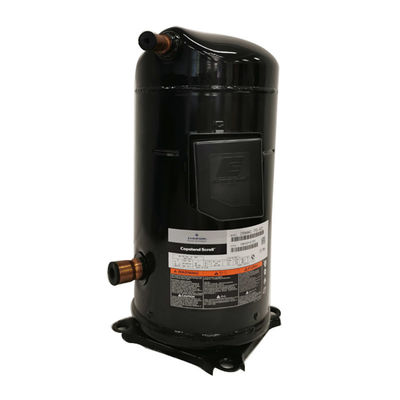

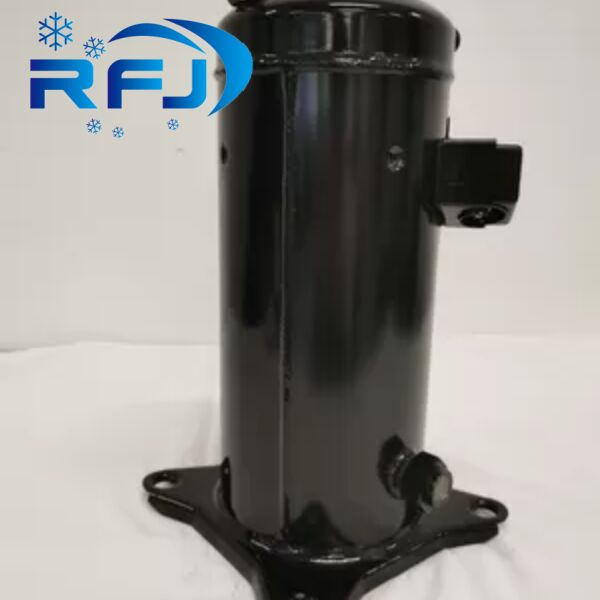

5HP Zh Scroll Compressors Zh38K4e-Tfd Copeland Copelametic Compressor for Heat Pump
1, Product Description:
| Nominal motor power [HP]: | 5 | |
| Displacement [m³/h]: | 14,4 | |
| Sound pressure level : | 60 | |
| Weight [kg]: | 41 | |
| Oil charge [dm³]: | 1,89 |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 64 | |
| Max. operating current [A]: | 14 | |
| Winding resistance [Ω]: | 2,75 |
| milimeters | inches | ||
| Suction line: | 7/8" | ||
| Discharge line: | 1/2" |
2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency
3.Drawings
ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price
3.High Efficiency
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
