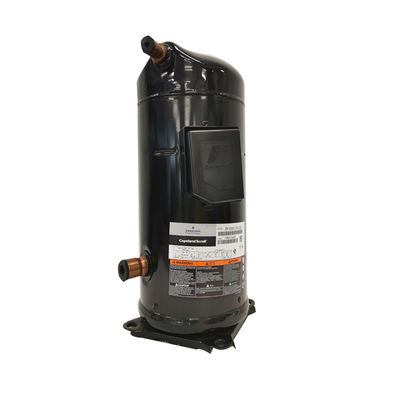

China Zh11m4e-Twd 15pH Copeland Scroll Compressor for Heat Pump Applications
1, Product Description:
| Shipping weight: | 122,00 Kg |
| Dimensions ( length × width × height ): | 35,70 × 32,10 × 57,90 cm |
| Manufacturer: | Copeland Emerson |
| Model: | ZH11M4E-TWD524 |
| Power (W): | 37000 |
| Heating power condition: | R407C, condensing temperature +50 C |
| Heating power (W): | 46300 |
| Power (HP): | 15 |
| Max. Starting current (A): | 198 |
| Max. Operating current (A): | 32 |
| dbA @ 1m: | 72 |
| Note: | Recommended crankcase heater 70 W / 283 mm, |
| Conveying and suction volume (m3): | 42,8 |
| Oil quantity (l): | 4,1 |
| Compressor type: | Scroll |
| Suction (inch): | 1.5/8 |
| Discharge (inch): | 7/8 |
2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency
3.Drawings
ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price
3.High Efficiency
Copeland Scroll™ Compressors For Heating are designed for optimum operation and reliability of heat pumps connected to hydronic distribution systems for space heating and/or for the production of domestic hot water. These applications require reaching condensing temperatures as high as 65°C with high efficiency and reliability over a broad operating range. Features such as brazed fitting connections and special versions for the tandemization of compressors fit the requirements of heat pump systems.
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
