Stable Operation DL260 Evaporator for Large Cold Chain Storage

Name: Stable Operation DL260 Evaporator for Large Cold Chain Storage
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DL-53.3/260
Price: 5,000.00 USD
Availability: InStock

Nombre De La Marca:	Ruifujie
Número De Modelo:	DL-53.3/260
Cuota De Producción:	1
Precio:	Discussed
Tiempo De Entrega:	1 mes
Condiciones De Pago:	T/T, Unión Occidental

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Modelo:

DL-53.3/260

Capacidad de refrigeración nominal:

53,3 KW (53300 W)

Área coincidente:

260㎡

Tensión nominal:

380V

Solicitud:

Cámara fría, congelador

Cantidad mínima de pedido:

1 juegos

Garantía:

1 año

Embalaje:

Embalaje de la caja de madera

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

100 piezas

Resaltar:

DL260 evaporator for cold storage

large refrigeration evaporator

stable operation cold chain evaporator

Descripción del producto

Stable Operation DL260 Evaporator for Large Cold Chain Storage

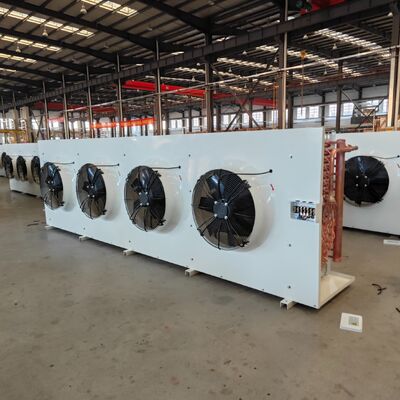

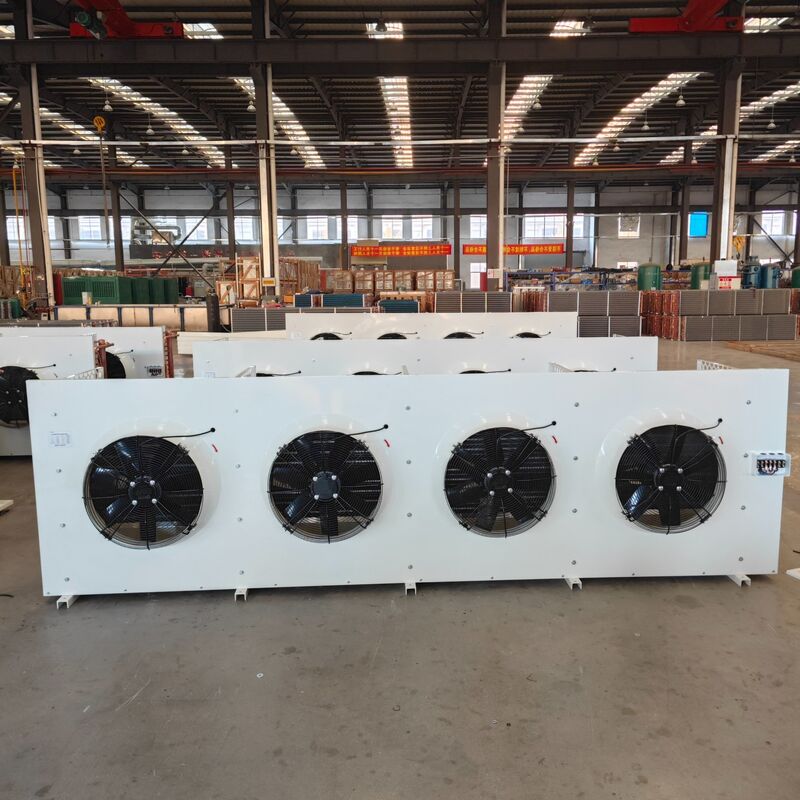

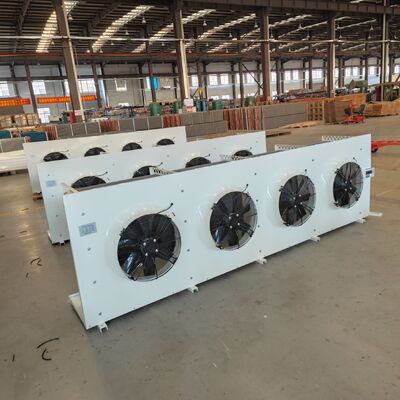

Product Images

Product Advantages

Ultra Powerful Cooling Output: 53.3kW nominal refrigeration capacity, perfectly matched for 260㎡ large cold rooms, maintaining stable low temperatures for high-volume cold storage applications.
Full-Coverage Even Air Distribution: 24000 m³/H high-volume airflow with 15m throw range, eliminating temperature stratification and cooling dead zones in expansive storage spaces.
Reliable Quadruple Fan System: 4×414W 380V fans with 500mm diameter, engineered for continuous 24/7 operation in demanding industrial refrigeration environments.
High-Efficiency Defrost Performance: 9600W fin defrost power paired with 2400W drain pan defrost power, efficiently removes heavy frost buildup in high-humidity conditions to avoid operational downtime.
Optimized Refrigerant Flow Circuit: 32.2L large tube volume with φ25/φ50mm inlet/outlet tubes, enhancing refrigerant circulation and overall heat exchange efficiency for heavy cooling loads.

Technical Specifications

Parameter	Specification
Model	DL-53.3/260 (DL260)
Nominal Refrigeration Capacity	53.3 kW
Applicable Cold Room Area	260 ㎡
Tube Volume	32.2 L
Refrigerant Inlet/Outlet Diameter	φ25 / φ50 mm
Fan Quantity	4 units
Fan Diameter	500 mm
Working Voltage	380 V
Total Fan Power	1656 W (4 × 414 W)
Air Volume	24000 m³/H
Air Throw Range	15 m
Fin Defrost Power	9600 W
Drain Pan Defrost Power	2400 W

Company Profile

Shenzhen Ruifujie Technology Co., Ltd. has more than 20 years of industry experience, specializing in high-quality refrigeration products and refrigeration compressors. Our main products include scroll, piston, rotor, semi-hermetic and screw compressors, which are sold to Jaipur, New Delhi, the USA, UK, Russia and other global regions. We have rich experience in ice machines and cold storage equipment, offer customized OEM/ODM services, and are highly recognized by global customers for premium refrigeration compressors and reasonable prices.

Packaging and Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union - 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

Q: What are the main products?

A: Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators

Q: What is your delivery time?

A: 1. For Sample order in stock, we aim to ship the compressor within 3 days.
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.

Q: What about the services and aftersale?

A: We guarantee product quality with a 1-year warranty. Our team ensures reliable support throughout and after your purchase.

Q: What are your price terms?

A: TT/WESTERN UNION
