| Nombre De La Marca: | Ruifujie |
| Número De Modelo: | RFJ-D7.7E6 |
| Cuota De Producción: | 1 |
| Precio: | Discussed |
| Tiempo De Entrega: | 1 mes |
| Condiciones De Pago: | T/T, Unión Occidental |

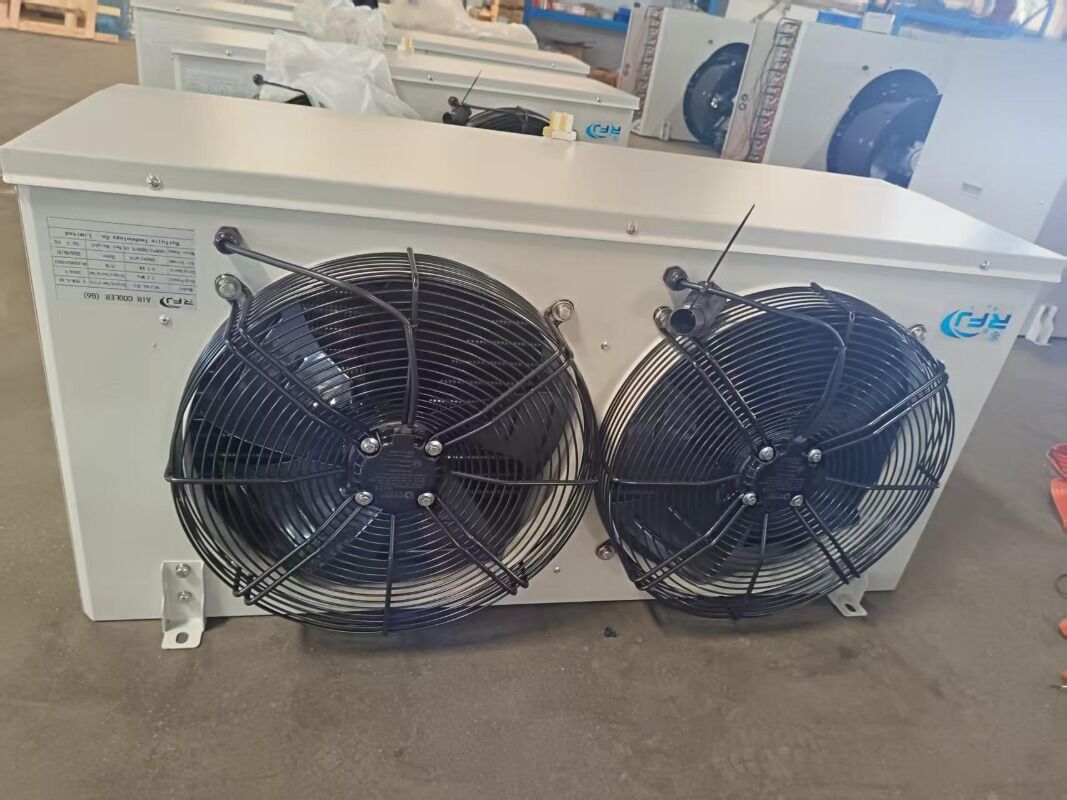

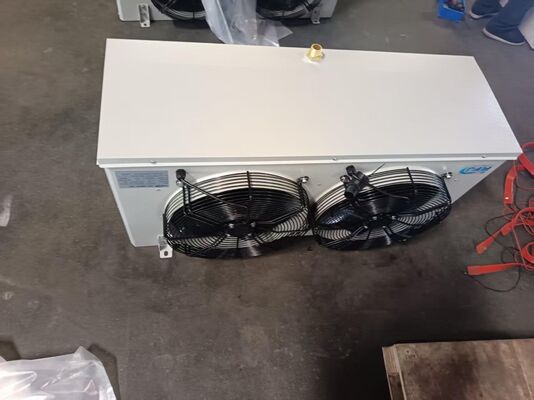

Keeping medium-to-low temperature storage spaces at a stable -18°C requires consistent, reliable circulation. The D7.7E6 air cooler for cold room uses dual 400 mm external rotor fans to distribute cold air evenly across storage racks. By providing a broad air throw of up to 10 meters, this air cooler for cold room eliminates warm pockets and dead zones, ensuring reliable temperature consistency for food processing plants and distribution hubs.
Frost build-up is a constant challenge for operators running continuous sub-zero operations. This air cooler for cold room features an inner-grooved staggered copper tube design paired with a wide 6.0 mm fin pitch. The wider fin spacing significantly delays frost bridging between the aluminum fins, reducing the frequency of energy-consuming defrost shutdowns and keeping the heat transfer rate high even under heavy cold storage loads.
Designed to withstand humid freezing environments, the outer casing is built from corrosion-resistant prepainted steel and rugged aluminum sheets. To make maintenance simple, the 4.7 KW electric defrost system is strategically split between the main evaporator coil and the drain pan, preventing melted ice from refreezing during discharge. To ensure absolute field reliability, every unit is pressure-tested at 2.8 MPa before dispatch.
| Parameter | Value |
|---|---|
| Model | D7.7E6 |
| Nominal Cooling Capacity | 7.7 KW |
| Air Volume | 2*3900 m³/h |
| Fan Power | 2*180 W |
| Voltage | 380 V |
| Liquid Inlet / Suction Outlet | 12 mm / 22 mm |
| Defrost Power | 4.7 KW |
With over two decades of manufacturing expertise in the industrial refrigeration sector, Ruifujie has established itself as a dependable supplier of high-efficiency systems. Our product portfolio includes advanced refrigeration compressors—spanning scroll, screw, and semi-hermetic designs—alongside commercial walk-in cold rooms, blast freezers, and industrial ice machines. Thanks to our automated production lines and deep engineering capability, we provide flexible OEM/ODM customization to meet specific corporate project demands. Ruifujie systems are built for long-term field stability and are exported to clients globally, including the United States, Saudi Arabia, and the United Kingdom.
At Ruifujie, we understand that every cold room layout has unique requirements. Whether you are a commercial contractor or an industrial distributor, our team can help tailor equipment to fit your exact needs. Contact us today with your room dimensions, target storage temperatures, and electrical standards, and we will provide a detailed technical recommendation and pricing quote within 8 hours.
|
|
