| Nombre De La Marca: | Ruifujie |
| Número De Modelo: | FNH2-34 |
| Cuota De Producción: | 1 |
| Precio: | Discussed |
| Tiempo De Entrega: | 1 mes |
| Condiciones De Pago: | T/T, Unión Occidental |

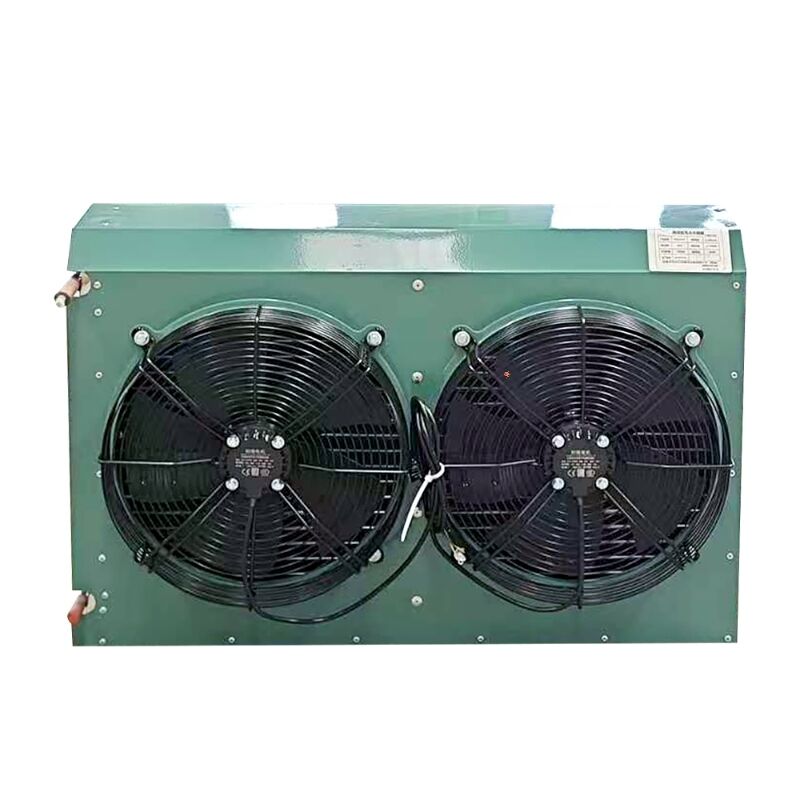

The FNH2-34 R407c condenser is engineered for medium-capacity refrigeration systems, agricultural cold storage, and commercial food processing units. With an 11 kW heat exchange capacity and 33.5 m² surface area, it resolves thermal overload in medium-scale cold rooms, keeping operational temperatures stable during intense cooling cycles.
In demanding summer conditions, insufficient heat dissipation leads to elevated discharge pressure and system trips. To tackle these operational challenges, this high-performance R407c condenser utilizes dual 400mm axial fans delivering 2×3400 m³/h airflow, combined with factory 3.0 MPa pressure testing to guarantee continuous pressure stability and zero gas leakage.
Featuring seamless copper tubes expanded into durable aluminum fins with a 4×10 row arrangement, this reliable R407c condenser optimizes heat exchange efficiency while resisting corrosion. Its standardized pipe connections ensure quick mounting and broad compatibility across commercial compressor brands.
| Parameter | Value |
|---|---|
| Model | FNH2-34 |
| Heat Exchange Capacity | 11.1 kW |
| Ring Number | 4x10 |
| Heat Exchange Area | 33.5 m² |
| Fan Power | 2×180 W |
| Air Volume | 2×3400 m³/h |
| Intake Inlet / Liquid Outlet | 19mm / 16mm |
Ruifujie brings over 20 years of expertise as a modern refrigeration equipment manufacturer. The enterprise specializes in scroll, piston, rotary, semi-hermetic, and screw compressors, along with integrated cold room, quick-freezing, and ice-making systems. Supporting flexible OEM/ODM customization, Ruifujie exports products worldwide to destinations including the US, UAE, and Russia, gaining strong global customer trust through excellent quality and competitive value.
Backed by over 20 years of manufacturing excellence, Ruifujie offers tailored configuration services to adapt each R407c condenser to your specific refrigeration unit design and working conditions. We support custom coil dimensions, fan motor specifications, sheet metal casing finishes, and multi-language nameplates. Contact us today with your technical parameters, order volume, and custom requirements to get a fast solution and quotation within 8 hours.
|
|
